Walls

6" Concrete Wall Definition Added to Lite



Banding Finish Options Added
When drawing banding, a list of default finish options is available. A profile view of these options is available in the Draw Polygon box.

Banding Profile Added





Block Cut of a Raked Wall Maintains Plate Heights


Blocking (Framing) in Curved Wall Improved

Cover Floor Option Added to Edit
When selected the outside wall material is ectened to cover the floor system. This was formerly done only if sub-floor was present.

Corner Board Size Can Be Edited on an Individual Basis





Curved Wall Appearance Improved in 3D





Curved Wall Change Wall Properly Maintains the Outside Radius of the Wall



Definition Option Added to Wall Edit Dialog
This feature opens up the Wall Definition dialog for the selected Wall. The wall definition can then be edited for the wall type selected.

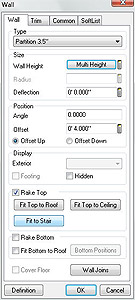

Fit To Stair Command Added to the Edit Wall Dialog




Inner Most Alignment Option Added To Edit Wall and Change Wall
When the change wall command is used the option to align walls using the inner most part of the wall is now available.

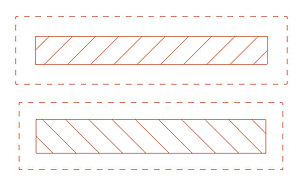

New Wall Textures Block Reversed Added




Rake Bottom Command Added

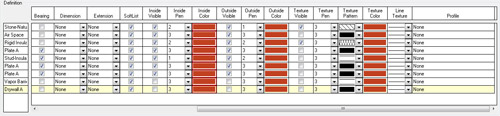

Select & Edit Multiple Fields at the Same Time on Wall Definition Dialog





Step Wall Command Added
Based on the inputs of number, length, height and start point of step, the Step Wall command takes the existing wall and automatically creates individual wall sections of required length, height and offset.


Stone Walls Added to the Extended Wall List



Strapping Wall Material Added




Stucco B Added to Wall Materials





Stud With Drywall on One Side Added to Remodelers Wall Definition




Tar Material Added





Wall and Beam Definitions Can Utilize Profiles





Wall Join Tolerance of Zero Allowed





Wall Joins Improved in Situations Where Short Walls Join Each Other
