Wall Framing

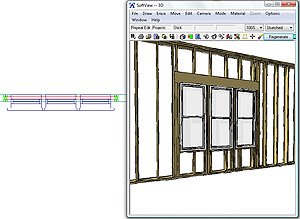

Add Header Command Added

This command is used to place a single header over multiple openings.




Blocking on Raked Walls Improved



Draw Select Will Select Individual Studs


Framing Dimension Defaults Added to Character Setup


Individual Studs Can Be Added, Removed, or Relocated



Individual Studs Can Be Extensioned/Dimensioned



Header Position Within Wall Thickness Added to Edit Dialog - Inside, Outside, Spaced

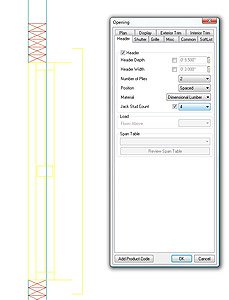

Jack Stud Count Option Added and Number of Jack Studs Can Be Specified on Opening Edit


Pocket Doors Framing Improved


Studs Can Be Modified from 2x to 4x for Shear Wall Applications


Snap Located Points on Individual Studs


Stud Spacing of Individual Walls Can Be Changed



Stud Thickness Can Be Changed on Individual Wall Types


Studs and Modified Studs Display in Different Colors in Framing Mode
