Electrical

Additionial Electrical Icons Added to the Toolbar
This allows more library items to be assigned shortcuts on the toolbar

Connection Symbol Added
Used When Connections go up a Stairway

Connection Visibility Separated from Symbol Visibility

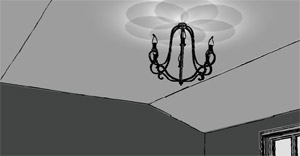

Fixture Placement on Double Hip Ceilings Improved

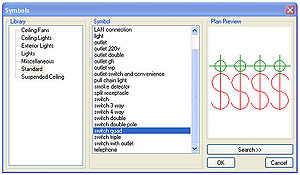

Double, Triple, Quad Switch Added
Double, Triple and Quadruple switches have been added to the electrical symbols library.

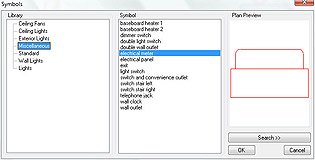

Electric Meter Symbol Added

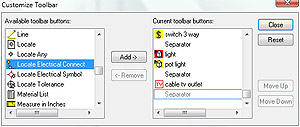

Locate Can Be Added to the Toolbar in Electrical Mode

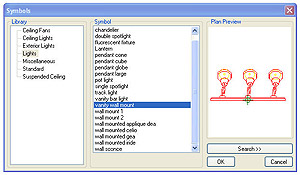

New Lights Added to the Library
Over 25 new lights have been added to the Electrical Symbols folder.








SoftView Mode Contains Draw Electrical Symbols
Electrical Symbols can be drawn in SoftView Mode.

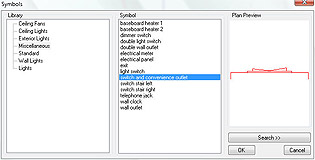

Switch with Outlet Symbol Added to Standard Library
The standard library now contains a switch with outlet symbol.

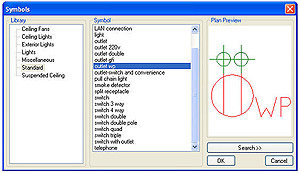

Weather Proof Outlet Added to Library
A weather proof outlet has been added to the electrical library.
