Add
Plate Under Header Option Added |
| |
A
new Framing option for ‘Add Plate under Header’
is available to automatically add a plate between the header
and top of the opening. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Adding
Additional Slab Footings to an Existing Structural Slab |
| |
The
‘Slab Footings’ command has been added to Floor
System mode. This command will allow placing additional
footings beneath load bearing walls. Slab Footings will
tie into the footings from Structural Slabs. This is useful
for generating monolithic slabs or floor beam (grade beam)
systems. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Align
Studs on Floor Joist Option Added |
| |
The
‘Align studs on Floor Joist’ option has been
added to the Wall Edit. By selecting this option, SoftPlan
will align the studs of the selected wall to align with
the joists running in the same direction. The alignment
is determined by the largest joist span along the selected
wall. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Corner
Style Single Stud Added |
| |
New
options for how the studs are framed at corners have been
added to the Framing options. These options are available
in the ‘Form Corner’ selection. They include
Single Stud and 4 studs. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Edit
Slab Edges and Footings on Structural Slabs |
| |
Individual
Slab edges can be edited on Structural Slabs and the new
Slab Footings to set the properties for each. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Edit
Walls in Framing Mode |
| |
Version
13 allows changing framing options on an individual basis
with a Wall Edit. The Framing menu appears for the selected
wall, where properties can be changed, such as: the ID number,
how the wall ends are forming with adjoining walls, and
the stud placements in the wall. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |

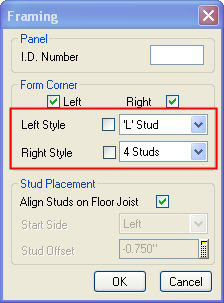

Framing
Style Can Be Differentiated on Each End of a Wall |
| |
Now
that Version 13 provides editing walls on an individual
basis, this gives the flexibility of defining different
Stud framing options for each wall end. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |

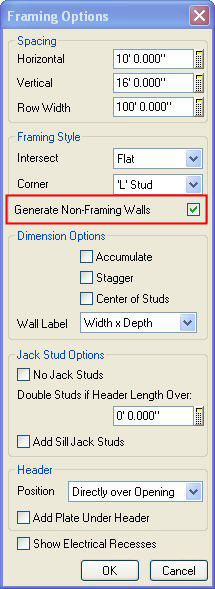

Generate
Non-Framing Walls Option Added |
| |
With
the ‘Generate Non-Framing walls’ option selected,
non-framed walls such as ICF, concrete or other wall panel
systems can be generated into Wall Panel diagrams and Plan
view diagrams by using ID numbers. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |

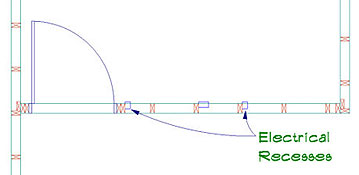

Show
Electrical Holes Option Added |
| |
This
new Framing option will indicate cutouts in Wall panel construction
wherever basic Electrical services have been placed along
walls. These will be represented as boxes in Framing mode,
as well as, the generated Wall panel and Plan View diagrams.
Offsets are determined by the offset assigned to the Electrical
symbol. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Stud
Offset Option Added |
| |
This
feature can be accessed on a Wall Edit in Framing mode.
The Stud Offset allows entering an offset distance for the
stud which will be from the beginning of the wall to the
beginning of the second stud. This offset distance is based
on the selected Start Side of the wall. |
| |
|
| |
|
