Deck
Outline Option Added to Visible Items |
| |
Display
a simple deck outline by turning on the Deck Outline option
under the Visible Items menu. This will toggle on and off
the display of the Deck Outline with a single line. This
allows turning off other deck information such as ring joists,
joists, decking, etc. to create a clear deck area on the
plan. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Display
Everything Option Added |
| |
This
is a global setting which will turn on the display for all
items in all modes. When it is turned off the settings will
go back to the previous selections. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |

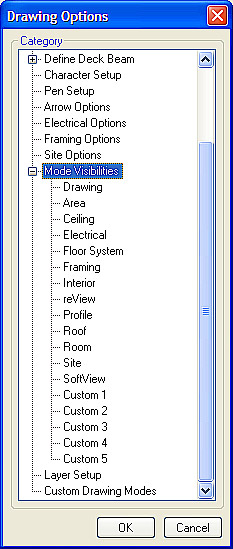

Mode
Visibilities Added to System Options |
| |
Easy
access to the Visible Items menu for all modes is provided
in the Mode Visibilities menu. The menu provides the ability
to select what items will display as a default in each individual
mode. This can be setup under the System Options or Drawing
Options. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Paint
in Symbols Added |
|
Paint
in Symbols has been added as an option to Visible Items.
This controls the display of the paint which can now be
saved in Symbols. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Plate
Height Available for Display in Ceiling Mode |
| |
The
Plate Heights can now be turned on for display in Ceiling
mode. This is helpful for determining levels of ceilings
to be added. It is found under the Roof section. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |

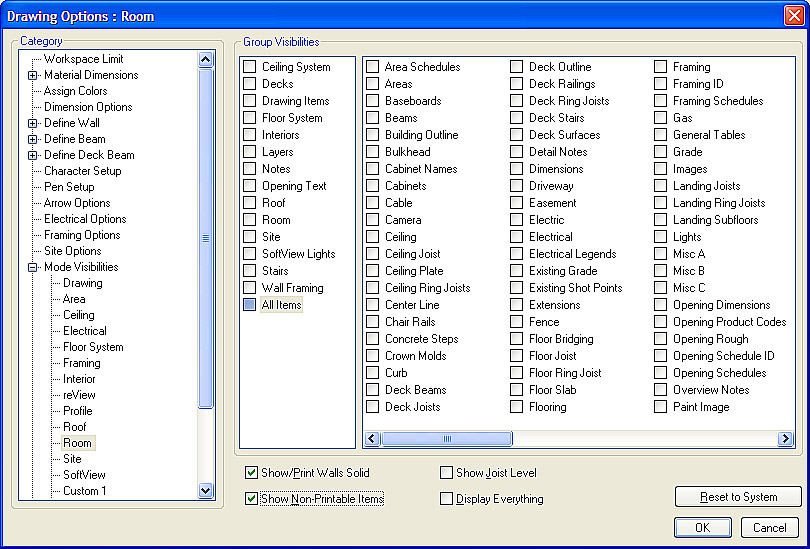

Show
Non-Printable Items Option Added |
| |
The
option for Show non-printable items is on as a default.
When turned off it will hide the display of non-printable
items, like reference edge circles, construction lines and
points. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
SoftView
Items, Camera, Target, Lights Available For Display in Plan
Modes |
| |
The
new section for SoftView lights can control the display
of the Camera and Lights. These options can be turned on
for additional plan modes such as Drawing, Electrical, Site,
and reView. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Visible
Items Control 117 Individual Types of Items |
| |
The
new format for the Visible Items menu provides the flexibility
to control the display within separate modes to make selections
based on groups of items belonging to different modes. This
expands the options tremendously for being able to customize
all of the display information into one menu. |
| |
|
| |
|
| |
|
