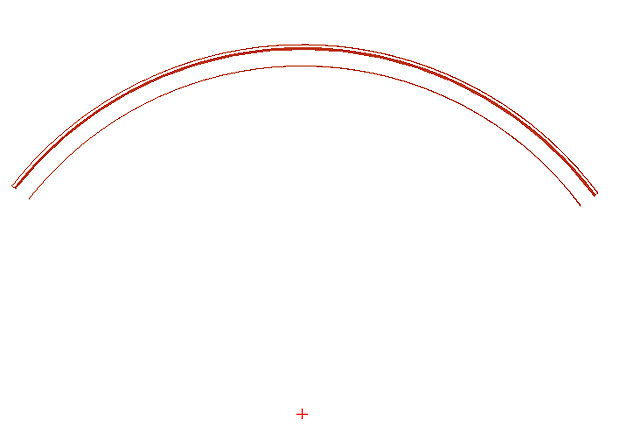

Center of a Curved (Radius) Wall
Is a Snap Point |
| |
The Cursor Snap command is now
able to locate the Center radius point of a curved wall.
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
Posts ‘Points’
Added |
| |
When using Cursor Snap with a
relative command it is possible to locate a specific point of a Post
which includes the center, midpoint, and corners.
|
| |
|
| |
 |
| |
|
| |
|
| |
|
|
Railing ‘Points’
Added |
| |
When using Cursor Snap with a relative
command it is possible to locate a specific point of a Railing which includes
the center, midpoint, and corners. |
|
|
| |
|
| |
|
|
Overlay Lines From the Overlaid
Drawing Are Available |
| |
The Snap function will now snap to
overlaid walls, beams, and posts. Once a drawing is overlaid and a
command such as, line or wall is active, the snap command can be
selected in the Tools menu by hitting F11. By clicking near the end of
an overlaid object, the command such as line or wall will start at the
end of that object.
|
|
|
| |
|
| |
|
| |
|
| |
|
|
Wall Midpoint
Added |
| |

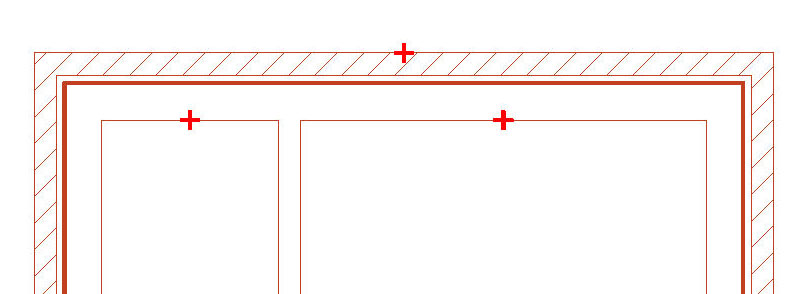

With the further development of
Cursor Snap locations, the Wall midpoint has now been added. This is
useful when needing to draw Beams, Walls, Symbols, or other items that
will originate from the midpoint of a Wall.
|
|
|
|
|
|
|
