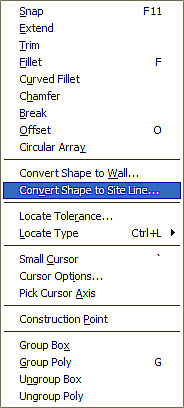

Convert
Shape to Site Line Command Added |
| |
The
‘Convert Shape to Site Line’ command can easily
convert shape lines to Site lines for use in Site mode.
This new tool is especially useful for converting Site plans
imported through .DXF or .DWG from other CAD programs. Engineered
drawings can easily have lines converted to a selected type
of Site Line. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Deck
Outline to a Generated Drawing |
| |
When
generating a drawing of a Building Outline in Site mode,
it will now include the outline of any decks that are included
in Drawing mode. This saves time from having to draw decks
manually. This feature also allows for a more accurate placement
for Site dimensions relative to the deck. |
| |
|
| |
 |
| |
|
| |
|
| |
|
| |
Draw
> Shape Commands Added to Site Mode |
|
It
is now possible to draw Shapes directly in Site mode. This
offers more flexibility with adding more custom information
to the Site plan. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Line
Type: Long Dash (long-short-short),
Short Dash (dash-dot-dash), Short Dash Added (dash-dot-dot-dash) |
| |
These
three new line types can be applied when drawing Site lines
to provide more variety when drawing services on the Site
plan. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Site
Polygons Automatically Form When a Site Shape Is Closed |
| |
When
entering Surveyor’s coordinates to form a closed shape,
it will automatically become a Site polygon. Site polygons
can be edited to give dimension for 3D modeling. |
| |
|
| |
|
| |
|
| |
|
| |
Visible
Items Dialog Contains All Site Types |
| |
The
Visible Items menu can control the display of all Site types
including Building outline, Property, Driveway, Setbacks
and other services. Items can be turned on and off as needed. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |

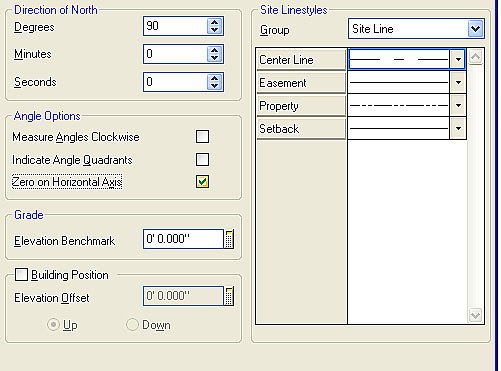

Zero
on Horizontal Axis Option Added |
| |
The
option for ‘Zero on Horizontal Axis’ has been
added to the Site Options. By selecting this option, the
zero axis can be changed to start at the 3‘o’clock
position. With the other option ‘Measure Angles clockwise’
turned on, it will measure with zero starting at the 12‘o’clock
position.
|
| |
|
| |
|
