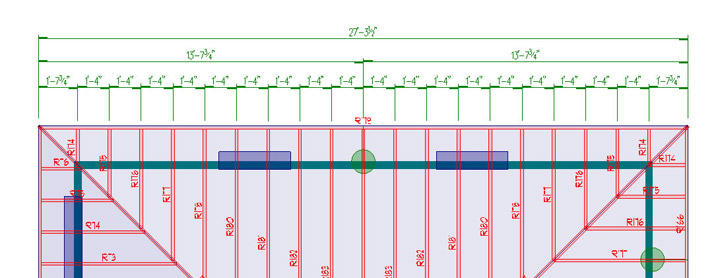

Dimensions
and Extensions Can Be Added and Edited in Roof Mode
|
| |
Dimensions
and Extensions can be added and edited in Roof mode making
it easy to modify aspects of the roof, such as the spacing
of individual framing members, roof outlines, skylights,
etc. These commands help to create a more accurate Roof
plan. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Double
Girder Trusses Display as Two Separate Trusses in Section |
| |
When
a Double Girder truss is drawn for roof framing, the cross
section will generate two distinct trusses in the drawing. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Fink,
Howe, and Queen Truss Types Added |
| |
Different
Truss types are now available in Version 13. These can be
applied to generate different styles of truss webbing. The
available types are Fink, Howe, and Queen. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Roof
Framing Can Be Labeled |
| |
When
stick frame construction is created for the Roof plan, ‘Framing
ID’ can be turned on as a Visible Item. This will
display a label for each framing member. With this information
a Roof Framing Schedule can be generated. All framing members
will be indicated by an R followed by a number. If framing
members have the same size, then they will have the same
ID label. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |

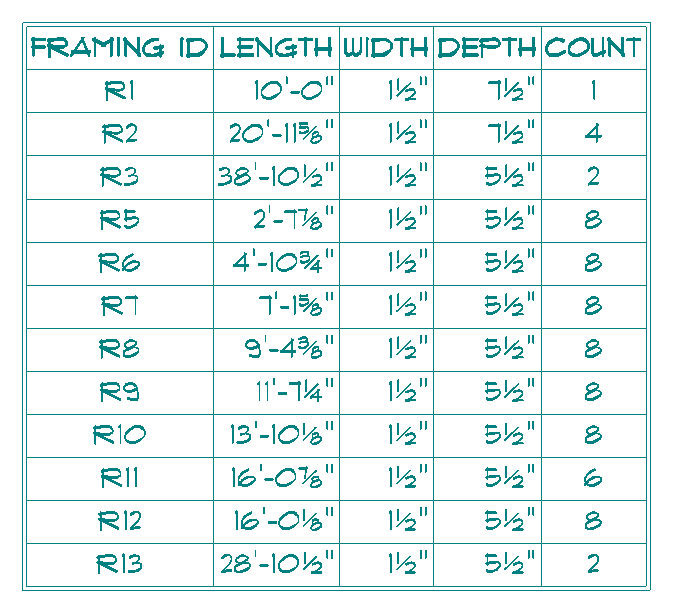

Schedules
of Roof Framing Can Be Created |
| |
When
stick frame construction is created for the Roof plan ‘Framing
ID’ can be turned on as a Visible Item. This will
display a label for each framing member. With this information,
the Roof Framing Schedule can be generated. It is an option
found under the Notes menu for Framing Schedules. The Framing
schedule gives the label, dimension information, and count
for each size. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Size
of Member Is Displayed When Edited |
| |
When
a framing member is edited, the size is given. This includes
the width, depth, and length. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Trim
and Extend Commands Apply to Framing Members |
| |
Simple
modification to the lengths of framing members can be made
using Trim and Extend. These can be used in a situation
where a framing member is too long or too short and there
is an existing framing member that can be used as a Trim
or Extend line. These commands will now work to more accurately
amend the lengths. This is an alternative to using Adjust
Item. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Wall
Studs Can Be Displayed When Placing Roof Framing by Changing
the Visible Items |
| |
When
placing roof framing, it may be useful to see the wall studs
from below. ‘Wall Framing’ has been added under
the Visible Items menu which can be turned on to display
all studs in the drawing for your reference. This allows
for more accurate placement of framing. |
| |
|
| |
|
| |
|
