Adjust
Height to Fit to Beam Option Added |
| |
Within
the Post Edit dialog is the option ‘Adjust height
to fit to beam.’ When selected, the program will automatically
calculate and set the value to bring the Post height to
the underside of the beam that is drawn above. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Craftsman
Style Post Added to Library |
| |
A
new Craftsman style Post has been added to the Decorative
Post Library. This is a square post that has a different
width at the base than the top. There is a corresponding
3D Symbol for this Post, which provides the proper detail
for SoftView. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |

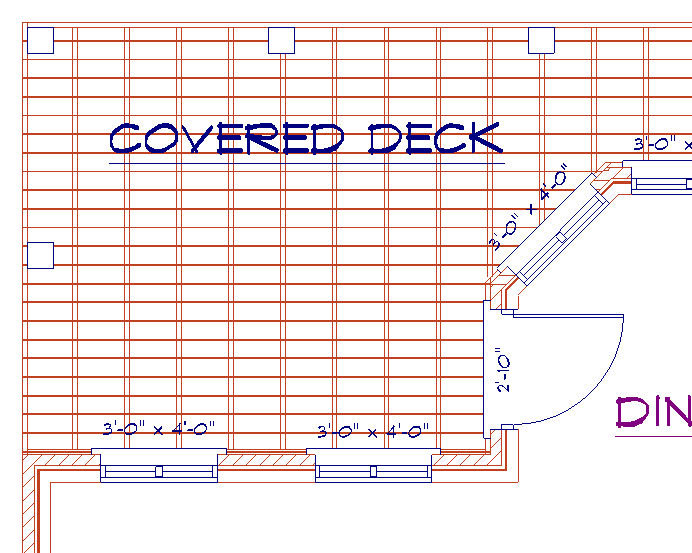

Hide
Deck Lines Option Added |
| |
When
editing Posts, the Hide Deck Lines option can be selected.
This makes the Posts easier to see on the plan by preventing
the deck lines from showing through them. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |

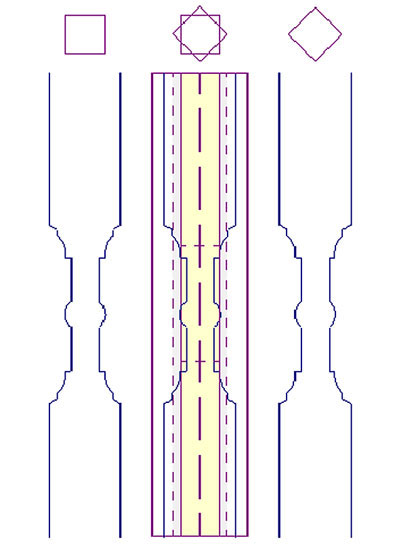

Lathe
Tool Can Be Used to Create Post Profiles |
| |
Posts
can now be linked to detailed profiles that are available
in SoftPlan Libraries. These profiles have been created
by using the Lathe tool. This provides countless possibilities
for creating custom Post shapes that will display an accurate
profile when generating in SoftView. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Snap
Can Locate to the Center, Midpoint, and Corners of a Post |
| |
Further
development has been made to the snap points used in Version
13. When using a relative command (i.e. Move), it is possible
to use the Cursor Snap to locate a specific point of a Post
which includes the center, midpoint, and corners. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Wood
Pile Added to the Post Library |
| |
For
building construction that requires using wood piles, for
structural support, there is a new option for this which
has been added to the Structural Post Library. |
| |
|
| |
|
| |
|
| |
|
