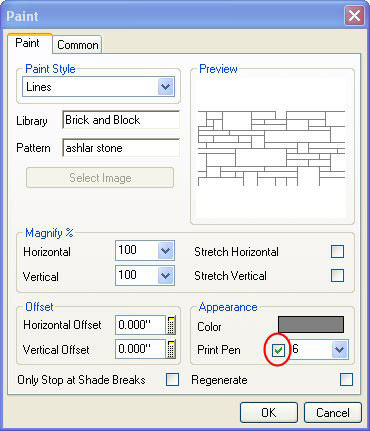

Default
Pen Selection Added to Edit Dialog |
| |
The
Paint Edit dialog now gives the option of using the default
pen for Paint or enabling the option to choose a different
pen. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Fill
Improved: Smaller More Complicated Shapes Fill Completely
|
| |
Paint
patterns will now more closely follow the boundaries within
objects to fill completely. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |

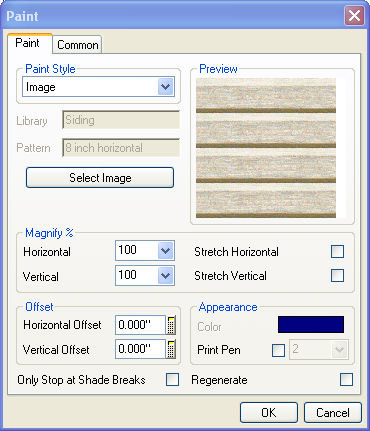

Paint Command Added |
| |
Paint can use bitmap (.bmp), jpeg (.jpg), or targa (.tga)
images as patterns to fill in objects of the drawing. When
this command is selected, it allows browsing to a folder
location to select an image file. This command can be used
to apply more realistic “pictures” to drawings.
For example, this can be used to apply a picture of actual
siding, shingles, and brick to the elevation drawings. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |

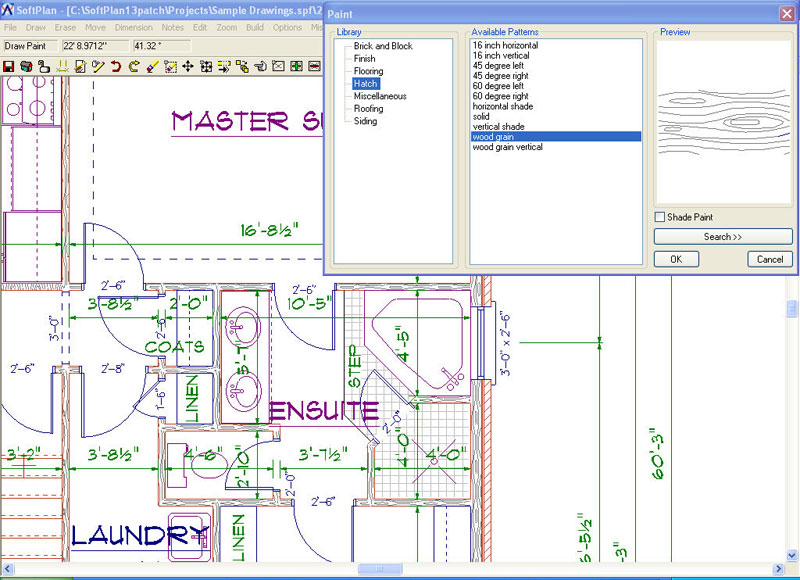

Paint
Can Be Applied Inside the Thickness of Walls |
| |
For
presentation drawings, often you will see that the walls
on the plan have been filled in solid. This can now be achieved
by applying a solid paint pattern within the wall thickness
on the plan. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |

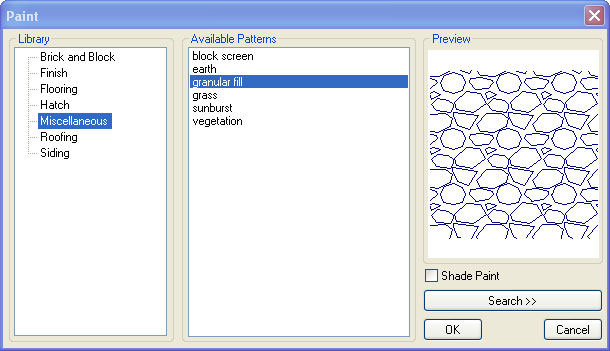

Paint
Patterns Added |
| |
Version
13 has additional Paint Patterns available in the Paint
Libraries. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Solid
Paint Command Added |
| |
In
previous versions, the solid paint pattern was comprised of
a very dense series of lines. In Version 13 there is a truly
solid paint pattern available. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Symbols
Can Contain Paint |
| |
To
display more of a contrast between Symbols and other items,
the Symbols can be filled with a Paint pattern. This will
control how Symbols display on screen, as well as, how the
assigned pen for the Paint pattern can control how the filled
symbol is printed with regard to color (or shading). Some
SoftPlan symbols have already been created to contain solid
Paint so that they can be distinguished in Room mode. |
| |
|
| |
|
| |
|
| |
|
| |
Visible
Items List: Paint Image, Paint Solid, Paint Line, Paint in
Symbols Added |
| |
The Visible
items menu has added these items:
|
| |
- Paint
Image – turns on or off the display of applied Paint
images (.jpg, .bmp, .tga)
-
Paint Solid – turns on or off the display of applied
Solid Paint patterns
-
Paint Line – turns on or off the display of lines
(shapes) that make up Paint patterns from the Paint Libraries
-
Paint in Symbols – turns on or off the display of
Paint that was applied as part of a Symbol
|
| |
|
| |
|
| |
|
| |
|
| |
|
