Custom
Modes Added |
| |
Version
13 has expanded the available modes to include 5 Custom
modes. This allows creating additional plans with more customized
information by selecting which Visible Items will be displayed,
as well as, Layers can control associated items on the plan.These
Custom modes can be used to maintain additional plans for
Mechanical, Plumbing, etc. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |

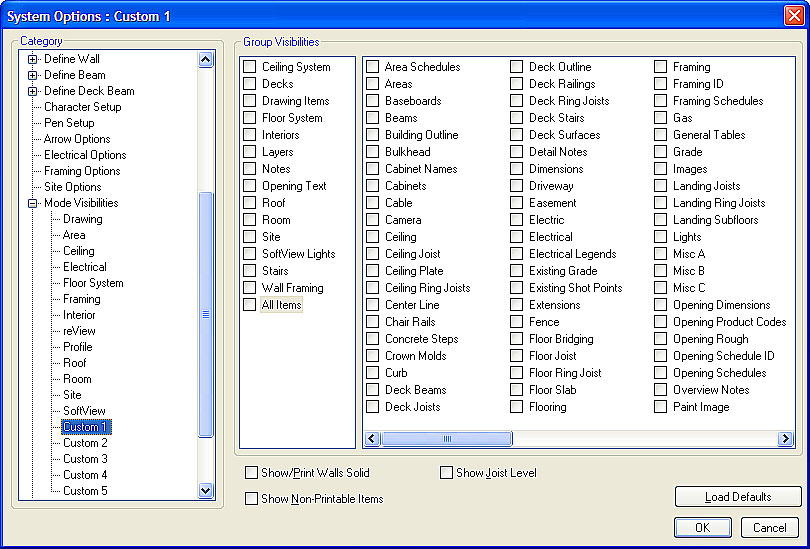

Mode
Visibilities Option Added |
| |
Easy
access to the Visible Items menu for all modes is provided
in the Mode Visibilities menu. The menu provides the ability
to select what items will display as a default in each individual
mode. This can be set-up under the System Options or Drawing
Options. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Profile
Mode Displays Floor Systems Including Slabs |
| |
Floor
System items now display in Profile mode. This provides
more information for profiles showing the basic elevation
view of the working drawing in order to visually check heights
and offsets. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
reView
Mode Added to Store the Markups and Redlines |
| |
reView
mode has been added to store the reView items such as markups
and redline information, service symbols, and punchlist
items created in the reView viewer by customers, contractors,
designers, etc. reView files that are imported back into
the original drawing will have the reView items shown separately
in its own mode. This allows the information to be maintained
separate from the drawing but is there for reference when
making further changes to the drawing. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Room
Mode Added |
| |
Room
mode has been added in order to maintain information specific
to room finishes in a separate mode. Room polygons can be
added to automatically place interior details such as flooring,
wallcovering, chair rail, baseboards, bulkhead, and crown
molding all in one step. Each room will display with a different
solid color for visual differentiation. A Room Edit provides
a table where the Room information can quickly be accessed
and easily updated for all rooms. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
SoftView
Mode Added |
| |
SoftView
mode has been added in order to maintain information specific
to SoftView modeling that is separate from other modes.
This mode can control lighting settings, camera and focus
positioning, as well as, symbol and light source placement.
SoftView mode works in relationship with the Camera Control
in SoftView. This mode also offers the basic commands as
in SoftPlan to be able to Edit, Move, Erase, Undo, etc.
items |
| |
|
| |
|
