Beams
Added to Floor System Will Allow for the Creation of “Flush
Beams” |
| |
When
drawing Beams in Floor System mode, they will draw flush,
with the bottom of the Beam at the top of wall (from the
plan below). The Beams will be placed at the bottom of the
current floor plan set at the zero baseline. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Dimension
and Extensions Can Be Added and Edited to Floor Framing and
Slabs |
| |
Dimensions
and Extensions can be added and edited in Floor System mode
making it easy to modify aspects of the floor system, such
as the spacing of individual framing, framed holes, slabs,
beams, etc. These commands help to create a more accurate
Floor System plan. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Framing
Can Be Labeled (L1, L2, L3…) |
| |
When
a floor system is created, ‘Framing ID’ can
be turned on as a Visible Item. This will display a label
for each floor joist. With this information a Floor Framing
Schedule can be generated. All joists will be indicated
by an F followed by a number. If joists are the same size
they will have the same ID label. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
International
Building Code 2003 Span Tables Added |
| |
Span
tables have been setup for Floor joists according to the
International Building Code 2003. SoftPlan has provided
tables for different species and grades of lumber. This
saves valuable time in having to set-up the tables yourself.
SoftPlan still gives the flexibility to change these tables
or add new ones to reflect your local building codes. The
Span Tables can be activated to provide messages when the
spans do not meet the criteria. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |

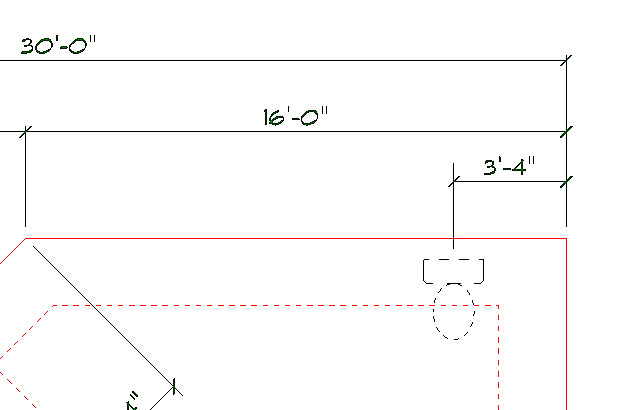

Plumbing
Drops Available to Extension and Dimension |
| |
Plumbing
drops belonging to plumbing symbols now have the ability
to extension and dimension. This allows for more accurate
placement of floor framing in relation to plumbing symbols. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Profile
Mode Displays Floor Systems Including Slabs |
| |
Floor
System items now display in Profile mode. This provides
more information for profiles showing the basic elevation
view of the working drawing in order to visually check heights
and offsets. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Schedules
of Framing Can Be Created |
| |
When
a framed floor system is created the ‘Framing ID’
can be turned on as a Visible Item. This will display a
label for each floor joist. With this information, the Floor
Framing Schedule can be generated. It is an option found
under the Notes menu for Framing Schedules. The Framing
schedule gives the label, dimension information, and count
for each size. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Slab
Footing Command Added |
| |
The
‘Slab Footing’ command has been added to Floor
System mode. This command will allow placing additional
footings beneath load bearing walls. Slab Footings will
tie into the footings from Structural Slabs. This is useful
for generating monolithic slabs or floor beam (grade beam)
systems. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Visibility
Option Added for: Bridging, Joist, Ring Joist, Slab, Sill
Plate, and Subfloor |
| |
Visible
Items now allows you to control which Floor system items
are displayed on screen. These include Bridging, Joists,
Ring Joists, Slabs, Sill plates, and Subfloor. When multiple
materials are drawn, this gives the ability to turn off
the display of some materials gaining a better visual of
the remaining materials. This also makes it easier to make
adjustments to specific materials.
|
| |
|
| |
|
| |
|
