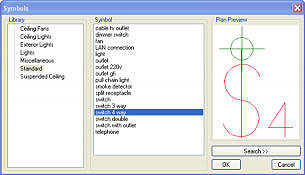

4
Way Switch Added |
| |
An
addition has been made to the Electrical Symbols to include
a standard 4-way switch. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |

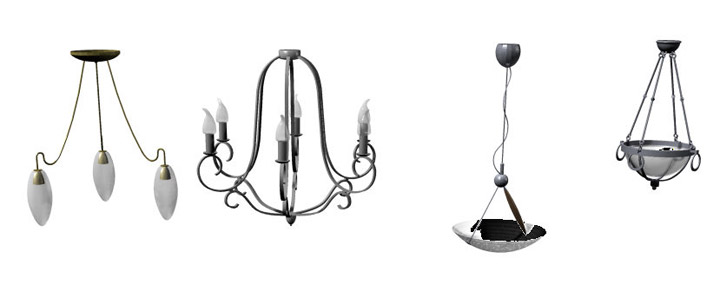

Additional
Lights Added |
| |
Additions
have been made to the Electrical Symbols to include more options
for standard lights. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Exterior
Light Library Added |
| |
Version
13 now provides a separate library that contains a selection
of exterior lights. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Lights
Can Have SoftView Lights Embedded |
| |
Electrical
Symbols and Symbols that contain lights now include embedded
SoftView light sources which will be reflected in the 3D
model. This makes Version 13 more versatile with regard
to lighting conditions. By simply placing these symbols
on the plan it is possible to instantly illuminate aspects
of the model with up light and down light options, as well
as, other settings for an overall atmospheric appearance.
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Save
As Default Option Added To Electrical Legends |
| |
There
is a new option that allows you to save the defaults for
what information will be generated in Electrical Legends.
This will save time from having to customize the information
every time a legend must be added to the plan. With this
option selected, SoftPlan will automatically place only
the information you want to see. |
| |
|
| |
|
| |
|
