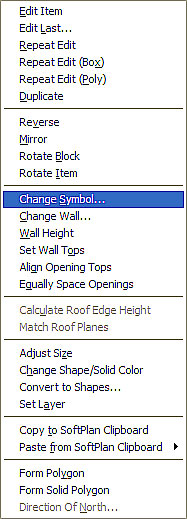

Change Symbol Command
Added |
| |
The Change Symbol command can be
used to replace all instances of an existing symbol type to a new
symbol. For instance, all oval basins can be changed to pedestal sinks
in one step.
|
|
|
| |
|
| |
|
| |
|
| |
|
|

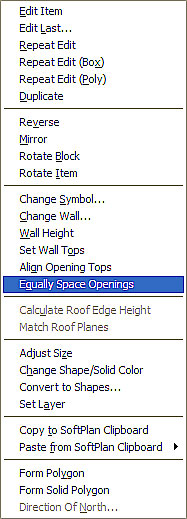

Equally Spaced Openings Command
Added |
| |
Version 13 provides an easy-to-use
command for equally spacing out multiple openings along a wall. Simply
select the wall and decide if the openings are to align according to
the inside or outside length of the wall.
|
|
|
| |
|
| |
|
| |
|
| |
|
|
Form Solid Polygon Command
Added |
| |
Turn connecting lines into solids
by using the Form Solid Polygon command. The Solid Polygon provides a
3D object that can be edited for height and offset.
|
|
|
| |
|
| |
|
| |
|
| |
|
|
Hold Position Option Added to
Paste from SoftPlan Clipboard |
| |
The Hold position option allows to
Paste information from the SoftPlan Clipboard according to the
drawing’s origin, or through the use of Reference points. This allows
aligning information from different drawings more accurately.
|
|
|
| |
 |
| |
|
| |
|
| |
Set Layer Command
Added |
| |
The Edit menu now includes the Set
Layer command. This allows tracing a box around selected items in
order to assign a specific Layer. Layers are used to control color and
visibility of items that you want to associate together on the
plan.
|
