Area
is Reported on a Ceiling Edit |
| |
Simply
Edit the Ceiling drawn in Ceiling mode to display the area.
This is useful in determining Heat Loss and Gain values,
as well as, materials. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Plate
Command Added |
| |
When
a Plate material has been added to draw from Ceiling Mode,
it will be especially useful in construction where Roof
rafters will bear on additional plates placed on top of
the Ceiling Joists instead of the top plate of a wall. Once
the Ceiling Joists and Plates are drawn, the Plate will
automatically set above the Joists and set the correct level
for the Roof to be drawn and reference. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Plate
Height Added to Visible Items |
| |
The
Plate Height information for the plan can now be displayed
in Ceiling mode. This is selected under the Visible Items
menu while in Ceiling mode. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Profile
Command Added to Interiors |
| |
Through
drawing Bulkheads in Interior mode, the profile of ceilings
can be modified to create either a trey or barrel type ceiling.
This is a great tool for generating more complex ceiling
designs into Interior 3D modeling. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Reference
Points Can Be Adjusted off the Ceiling |
| |
Reference
points of Ceiling materials can be adjusted off the ceiling.
This is useful if a wall is moved in the plan and the ceiling
must be adjusted to reference the new wall location. It
can also serve if a new wall is drawn and the reference
point for the ceiling must be adjusted to it. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Reflected
Ceilings Plans Can Be Created Using the New Display Tile Option |
| |
When
laying out suspended ceilings, the “Display Tile”
option will allow the grid to be displayed in Ceiling mode.
Reflected Ceiling plans can be developed using the grid. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |

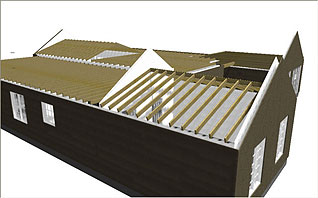

Sloped
Ceiling Joists Added to Automatically Follow the Pitch of
the Ceiling |
| |
This
is an automatic feature where Ceiling Joists will not be
horizontal. Once the Ceiling is drawn with the proper pitch
information, the Ceiling Joists will follow and slope with
the Ceiling. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Span
Tables IBC 2003 Added for Ceiling Joists |
| |
Span tables
have been setup for Ceiling joists according to the International
Building Code 2003. SoftPlan has provided tables for different
species and grades of lumber. This saves valuable time in
having to setup the tables yourself. SoftPlan still gives
the flexibility to change these tables or add new ones to
reflect your local building codes. The Span Tables can be
activated to provide messages when the spans do not meet
the criteria.
|
| |
|
| |
|
| |
|
| |
|
| |
|
