Wall Definition

SoftPlan’s customizable object oriented drawing allows you to define and draw walls that are specific to your building needs. Within SoftPlan you control all aspects of the wall’s definition including how it will look on the plan, how it prints, what textures will be assigned in 3D, and how it counts in the materials list. This powerful tool allows the user to create the most accurate materials list with the least amount of work and provides a uniquely accurate 2D and 3D design.

SoftPlan comes fully loaded with 3 sets of wall lists depending on what your needs are.

The Standard Wall List: This list contains 30 plus standard walls that are common to most construction types.

The Extended Wall List: This list contains all of the standard walls as well as many more conventional and unconventional types of walls.

Remodeler Wall List: This lists all of the standard walls needed for design plus configuration for walls for new construction as well as demolition.

Additionally, available at not extra cost as a download from our website, is a wall list for light gauge steel construction.

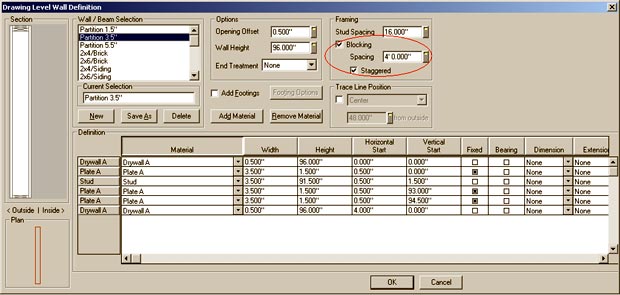

Using any of the above wall definitions you can create and manage your designs including the creation of new walls as needed. Simply open the wall definition menu and begin building the cross section of the wall and inputting information such as height, materials, stud spacing and if applicable footing sizes. As the wall is constructed, a preview of the new wall will be dynamically updated as it is defined.
