Windows and Doors

Drawing an opening within SoftPlan is as easy as deciding on what type and size of opening you will need, and clicking on the wall where that opening is to be added. Depending on your options, that opening will be added, dimensioned, and labeled accordingly.

Manufacturer Product Codes

Manufacturer Product Codes

When it comes to design, SoftPlan leads the industry with literally hundreds of pre-defined openings as well as even more pre-defined Manufacturer Product Codes. When selected, these openings will draw to the library specifications, saving you countless hours of modifying.

Custom Openings

Edit Custom Opening

As SoftPlan also provides easy to access tools for designing and managing your own customizable openings and libraries, you can quickly expand upon what is there if necessary.

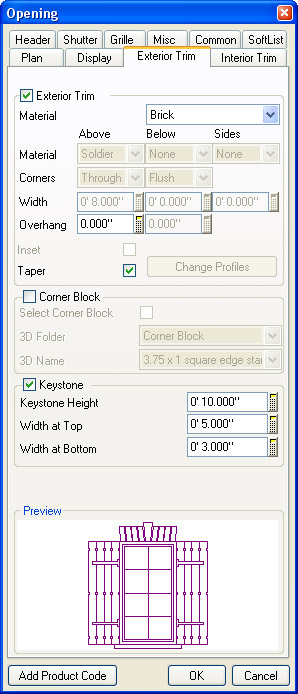

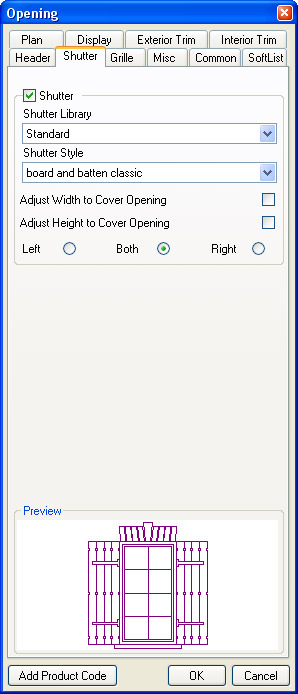

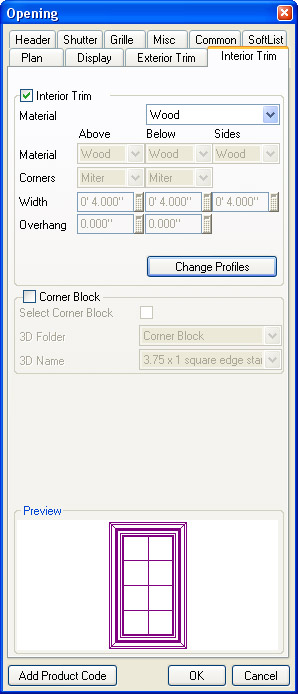

Every opening, regardless of style, can have properties such as type of exterior trim (brick, stone, or cast), grille patterns (prairie, top only, custom spacing) , plus casing packages all customized to ensure that your elevations, 3D Renderings, and Material take-offs are correct.

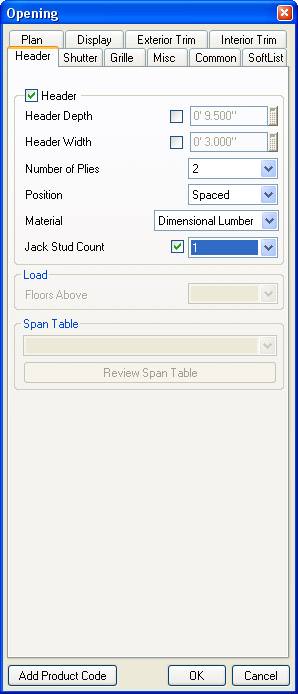

In addition to adding the door or window, SoftPlan will also adjust the framing and specify the header information in the wall layout to ensure both an accurate material take-off as well as allowing for design considerations within your wall panels.

Adding Windows and Doors See Laying Out Walls
Editing Windows and Doors   See Laying Out Walls
