SoftPlan 2012 New Features: Roof Framing



Collar Ties

Collar Tie command added, automatically places collar ties at 1/3 of the rafter length.



Energy Heel

Trussed will automatically form an Energy Heel when required.


Purlins

Purlins added to Roof Framing Commands.  Selected on the roof edit dialog, Use Purlins automatically add purlins of the size and spacing selected.


Renumber Roof Framing ID’s command added

Located on the Note menus.

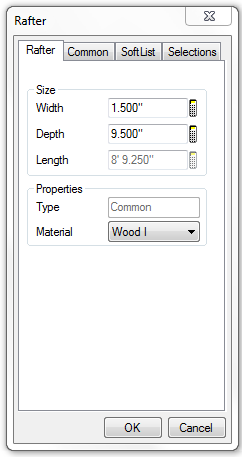

Wood I Type added


Roof Trusses are automatically clipped by Soffits


Truss Sets are automatically placed perpendicular to the ridge
