SoftPlan 2012 New Features: Notes



@drawing stamp added

Automatically inserts the current file name into a Note.



Auto Label

Auto Label added to the right mouse click.

Auto Label notes are automatically added in UPPERCASE.


Color

Colors  of individual Notes can be changed.


Curved Note command added

The radius is entered as 3 point or SER (start point, end point, radius) or SCL (start point, center, length).



Explode

Exploded Notes maintain their justification and position.


Note dialog is resizable


Open Type Fonts usable in SoftPlan


Outline Mask option added

Blocks out lines and shading behind a note making it easier to read.  The shape of the Mask is controlled by the Outline selection.


 Outline Type Left Bar & Right Bar added



This image shows the Left Bar Note Outline type.




Pointers

Pointers can be drawn either from the note to the object or from the object to the note.



Pointers

Pointers will automatically open the add note dialog if there is not already existing at the end of the pointer.


Replace command added

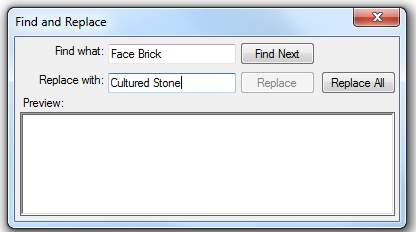

Search and replace text in existing notes on a drawing.


Right Click Mouse Menu

Click the right mouse button away from all items and a menu containing Notes appears.


Schedules

Floor, Ceiling & Roof Framing Schedules can be set to list Exact or Modular sizes.


Snap

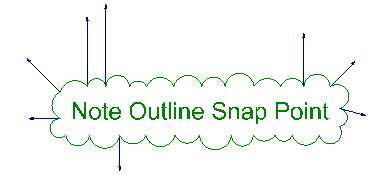

Note Outlines serve as a Snap point.



Stamps command added

Select Stamps from the Note dialog and have access to SoftPlan's information stamps, the @ commands.


Spline Pointer Type added




Triangle Outline type added
