SoftPlan 2012 New Features: Cross Section

Shaded

 The default elevation view is shaded.

Section Lines

Section Lines can be drawn on any drawing in the project and displayed on any other drawing in the project.  In older versions the section  line always had to be on the lowest floor. Display is controlled via the Visible Items settings.

Section Poly Line added

Allows for the creation of stepped Section lines.

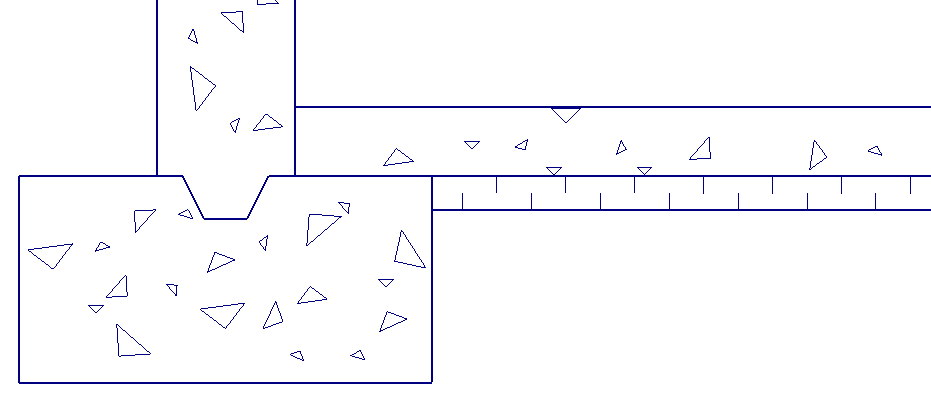

Slab Insulation

Slab Insulation automatically added to sections.

Symbols

Symbols have an Extract In Section option added giving the user control over the whether or not a symbol shows up on a cross section.

Saved Drawing

The number of small lines on a saved section drawing are reduced resulting in a drawing that takes less effort to finalize.
